Cardiac Pathophysiology Examination
Sept 26, 1995
1) Freddie Fox is a devious fellow!! He has stolen the labels to Dr. Smith’s picture of the cardiac cycle!!
Can you help Dr. Smith fix his picture before he gives his lecture to the second year students??
Please label the picture with the following:
"a" ......for atrial systole (atrial "kick") "MVO" ........for mitral valve opening
"v" ......for the "v wave" "MVC".........for mitral valve closure
"S1".....for the first heart sound "AVO" ........for aortic valve opening
"S2".....for the second heart sound "AVC".........for aortic valve closure

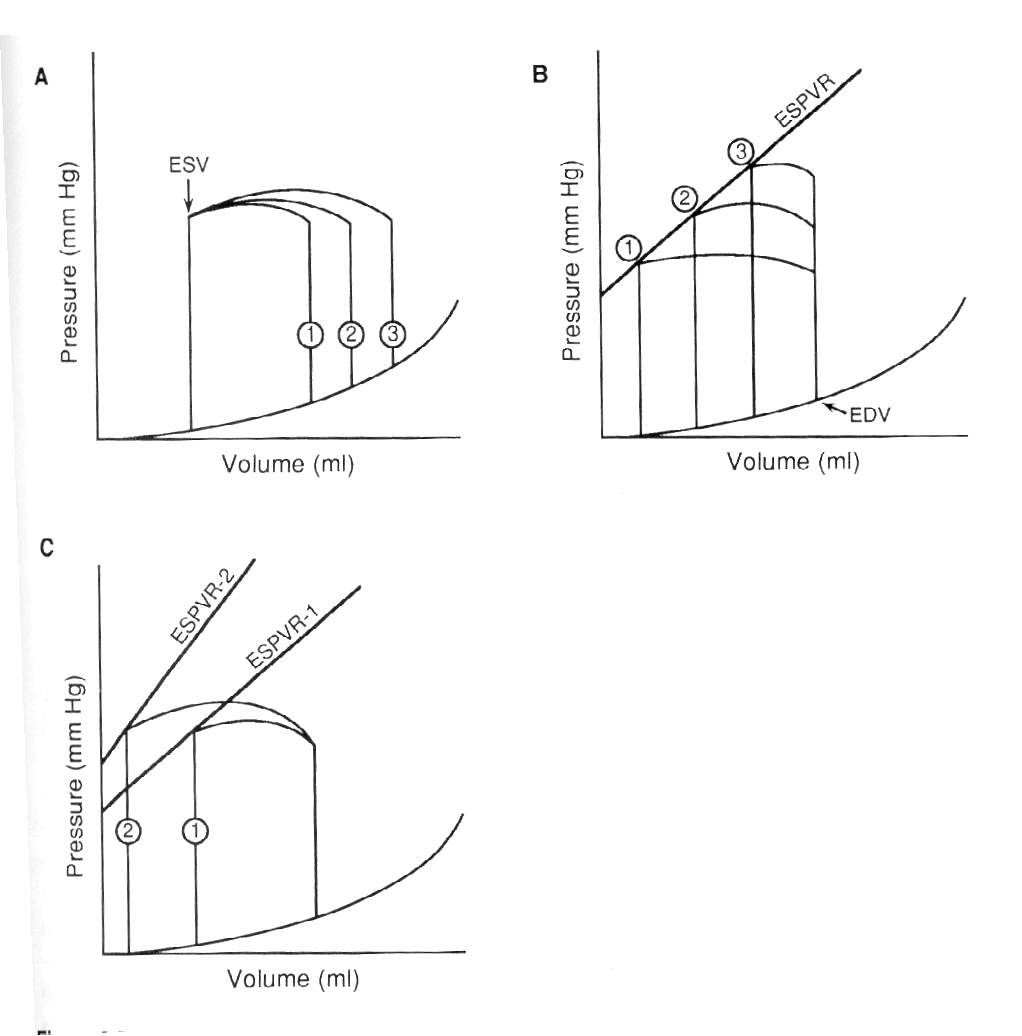

2) Freddie Fox is at it again!! Now he has taken the legend to the three pressure-volume relationships shown below!!
Please match each of the three labeled diagrams with
their corresponding legends, by filling in A, B, or C.
Legend _______ : These pressure-volume loops show the effect of increasing afterload on stroke volume.
Legend _______ : These pressure-volume loops show the effect of increasing preload on stroke volume.
Legend _______ : These pressure volume loops show the effect of adding an inotropic agent on stroke volume.
3) Left ventricular compliance is defined as:
a) P__
V
b) V__
P
c) D
P__
D
V
d) D
V__
D
P
e) D
P__
D
t
Answer: D
4) Left ventricular preload is defined as:
a) The amount of volume filling the left ventricle
b) The LV wall tension during systole
c) The diastolic wall radius of the LV
d) The LV wall tension during diastole
e) The sum of rapid ventricular filling and the left atrial "kick"
Answer D
5) In response to an excessive hemodynamic burden, the heart uses all of the following compensatory mechanisms to maintain cardiac output, except:
a) Myocardial hypertrophy
b) Decreased venous return
c) The Frank-Starling mechanism
d) Increased catecholamine release from adrenergic nerves and the adrenal medulla
Answer: B
For this page, please choose the one best answer to each question.
A sixty-five year old male presents to the emergency room two hours after the onset of substernal chest pressure. On physical examination, he is hypotensive (blood pressure: 80/50 mm Hg.) and has jugular venous distention. EKG reveals an acute inferior infarction pattern.
6) Each of the following, may be contributing to this patient’s hypotension, except:
a) sinus tachycardia
b) decreased LV stroke volume
c) right ventricular infarction
d) third degree heart block
e) decreased LV preload
Answer: A
7) Therapy to treat the hypotension might include all the following, except:
a) an intra-aortic balloon pump
b) intravenous inotropic agents
c) infusion of fluids (i.e. saline solution)
d) intravenous nitroglycerine infusion
e) elevating the patient’s legs
Answer: D

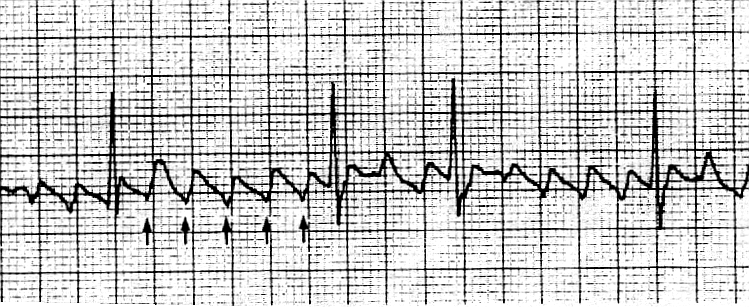

8) The next EKG taken on the patient reveals the
following rhythm:
Please identify the underlying rhythm and name the
abnormality:
________________________________________________________________
9) A patient with an acute anterior MI develops signs
and symptoms of congestive heart failure 12 hours after hospitalization.
A Swan-Ganz catheter is placed, and the following curve is constructed:
assuming no change in contractility?
__________________________________________________________
For each statement, please indicate if it is True or False.
__T______ 1. Concentric left ventricular hypertrophy results from chronic pressure
overload.
___T_____ 2. Aortic insufficiency causes eccentric left ventricular hypertrophy.
___T_____ 3. Hypertension causes serial replication of sarcomeres.
___T_____ 4. The presence of left ventricular hypertrophy denotes a worse
outcome in a hypertensive patient.
___T_____ 5. As many as 40% of patients with "CHF" may have normal left
ventricular systolic function.
___T_____ 6. Afterload reducing agents may be harmful in some patients with
diastolic dysfunction.
___F_____ 7. The heart is usually enlarged in diastolic dysfunction.
___F_____ 8. Inotropic agents are usually indicated for the treatment of
diastolic dysfunction.
For the following questions, please choose the one best answer.
With the use of a Doppler flow probe all of the following statements are true except:
a) Cardiac output can be estimated
b) Direction of blood flow can be determined
c) Intracardiac structures can be resolved
d) Pressure gradients across valves can be estimated
e) Mitral valve area can be estimated.
Answer: C
In patients with dilated cardiomyopathy one may find any of the following except:
a) Pulsus alternans
b) Pulsus paradoxus
c) Cardiomegaly
d) Increased left ventricular end diastolic volume
e) Decreased ejection fraction
Answer: B
For the following questions, please choose the one best answer.
Radionuclide imaging can be helpful to evaluate all of following conditions except:
a) Constrictive pericarditis
b) Atrial septal defect
c) Decreased left ventricular ejection fraction
d) Regional myocardial perfusion abnormalities
e) Regional myocardial contraction abnormalities
Answer: A
What is the approximate incidence of congenital heart disease in the United States?
a) 0.2%
b) 1.0%
c) 2.0%
d) 3.0%
e) 5.0%
For this question, please circle each correct answer. More than one may be correct.
Of the following, which are NOT determinants of the size and direction of shunted blood flow at any abnormal communication within the heart and/or circulatory system?
a) Age of patient
b) Location of defect
c) Size of defect
d) Blood viscosity (as determined by hematocrit)
e) Balance of relative downstream resistance
Name the three shunt pathways that are instrumental
in the fetal circulation.
____________________________________
____________________________________
____________________________________
Match the action potential Phase number to the description of the physiologic event in a ventricular muscle or Purkinje cell.
Phase 0 _____ a. Resting state, » -90 mV
Phase 1 _____ b. Repolarization, relying mainly on K+ efflux
Phase 2 ______ c. Returns membrane potential to 0 mV, possibly
from movement of CI ions
Phase 3 _____ d. Rapid Na+ influx
Phase 4 _____ e. Plateau phase, mediated by slow
Ca+ channels
Match the ECG wave, interval, or segment with the appropriate description:
P wave __I___ a. Useful for measuring heart rate
QRS complex __E___ b. Elevation is consistent with acute injury of
myocardial infarction; depression suggests
ischemia
T wave __F___ c. Need to be corrected for heart rate in order to
measure; if prolonged may predispose to a type of
ventricular tachycardia
R prime wave __H___ d. If prolonged, indicates bundle branch block
PR interval __G___ e. Ventricular depolarization
RR interval __A___ f. Ventricular repolarization
QRS duration __D___ g. Encompasses atrial depolarization, normal
conduction delay in AV node, and passage of
impulse through bundle of His and bundle
branches to ventricle
QT interval __C___ h. Second positive deflection of depolarization; seen
with right bundle branch block
ST segment __B___ i. Atrial depolarization
For each statement, please indicate if it is True or False.
___F_____ 1. In Wolff-Parkinson-White, in which there is a bypass tract from atria to
ventricles, the PR interval is lengthened.
___T_____ 2. Re-entry requires two pathways that have different conduction properties.
___F_____ 3. Adequate cardiac output is usually maintained during ventricular
fibrillation.
___T_____ 4. 2° AV block, Mobitz Type II, can be dangerous and lead to sudden
complete heart block.
___T_____ 5. Death of cardiac muscle produces Q waves on the electrocardiogram.
___F_____ 6. Atrial fibrillation is usually a regular rhythm.
___F_____ 7. An R’ depolarization wave is present in left bundle branch block.
___T_____ 8. A prolonged QT interval can predispose to a Torsades de Pointes
rhythm.
___T_____ 9. In atrial flutter, the P waves are often seen to have a "saw-tooth"
pattern appearance.
___T_____ 10. In complete heart block, A-V dissociation
can be seen.
The primary pathophysiologic abnormality of different valvular, congenital and cardiomyopathic lesions can be expressed in terms of ventricular volume and/or pressure overload. What is the primary overload pattern (LVVO, RVVO, LVPO, RVPO) for each of the following lesions:
Answers
a) Mitral stenosis ___________________RVPO
b) Chronic aortic regurgitation ___________________LVVO
c) Atrial septal defect with left-to-right shunting ___________________RVVO
d) Hypertrophic obstructive cardiomyopathy (HOCM) ___________________LVPO
e) Severe tricuspid regurgitation ___________________RVVO
f) Congenital VSD with right-to-left shunting ___________________RVVO
g) Dilated, congestive cardiomyopathy ___________________LVVO
Draw the pressure that would be recorded from the tip of an intracardiac catheter as it is withdrawn from the apex of the left ventricle to the aortic arch in each of the following patients.
a) Hypertrophic obstructive cardiomyopathy
b) Valvular aortic stenosis
c) Supravalvular aortic stenosis
d) Combined lesions of A & B
e) Combined lesions of B & C
a)
LV Apex Aortic arch
LV Apex Aortic arch
LV Apex Aortic arch
LV Apex Aortic arch
LV Apex Aortic arch
Describe the effect of the following maneuvers or interventions on the intensity of the murmur as detected by bedside auscultation for each of the conditions described below.
You are asked to see three patients in consultation.
Each has been told he/she has valvular heart disease as determined by a
cardiac catheterization performed at a distant hospital. Each patient has
a copy of his/her catheterization report. Based on the information provided,
what primary valvular abnormality best explains the findings for
each patient?
|
|
|
|
Ao
LV LA (WEDGE)
PAP RV RA
Murmurs LV ejection fraction |
120/18 a=18, v=16, mean=16 36/16 36/5 a=7, v=5 mean=5 Systolic 36% |
120/12 a=12, v=62 mean=26 62/26 62/5 a=7, v=5 mean=5 Systolic 84% |
120/6 a=26, v=22 mean=21 75/32 75/14 a=14, v=24 mean=16 Diastolic 58% |
Patient A: ______CHRONIC MITRAL REGURGITATION____________________________
Patient B: _______ACUTE MITRAL REGURGITATION___________________________
Patient C: _______MITRAL STENOSIS ___________________________
Which patient’s condition is the most acute (i.e. recent, not chronic)?____B_________
What other valve lesion is present in one of these patients? Which patient?
______TRICUSPID REGURGITATION, PATIENT C_______________________
_____________________________
The hemodynamic hallmark of valvular stenosis is the pressure gradient across the valve. Severe valvular aortic stenosis is characterized by resting gradients five to ten times greater than that observed with severe mitral stenosis (50-100 mm Hg vs 10-15 mm Hg.) Describe two or three reasons why the gradient in aortic stenosis is so much greater.
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
Patients with mitral regurgitation can have varying degrees of left atrial pressure elevation. What are the factors which determine the effect of mitral regurgitation on left atrial pressure?
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
Match the diagnosis to the description:
A. Restrictive cardiomyopathy
B. Hypertrophic cardiomyopathy
C. Congestive cardiomyopathy
D. Constrictive pericarditis
__C____ Reduced ejection fraction, apical systolic murmur, murmur diminishes in intensity with reduction of preload
___A___ Elevated jugular venous pressure, left ventricular end-diastolic pressure 25 mm Hg; right ventricular end-diastolic pressure 15 mm Hg
___D___ Jugular venous pressure rises with inspiration, systolic
blood pressure 140/80 mm Hg in expiration, 135/80 mm Hg in inspiration
Chest pain
_____________________________________________________________________
_____________________________________________________________________
Dyspnea
_____________________________________________________________________
_____________________________________________________________________
Syncope
_____________________________________________________________________
_____________________________________________________________________
What is the mechanism of mitral regurgitation in congestive cardiomyopathy?
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________

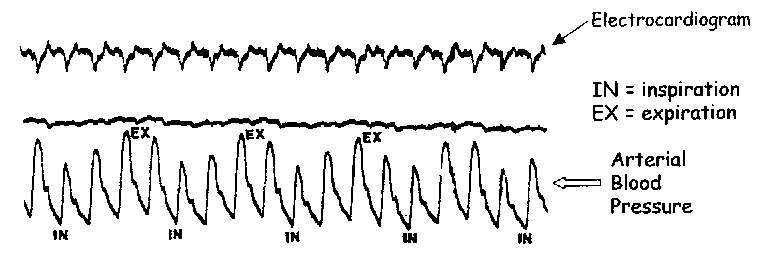

The patient whose cardiac catheterization pressure tracing is shown
above, would be expected to have:
High systemic venous pressure True False --- True
Kussmaul’s sign True False -- False
Pulsus paradoxus greater than 10 mm Hg True False --
True
Please provide a brief explanation for the mechanism of pulsus paradoxus and Kussmaul’s sign.
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
