The purpose of Munsell soil color charts is to determine soil color. With the color charts, the soil samples from the trenches were compared and recorded. The soil color is recorded by three different dimensions that describe the soil color. Analysis of soil color helps to differntiate stratigraphic levels from each other and highlight similarities in soils in different trenches. . By studying each level, or stratigraphic layer, we can find clues to the way the fill was laid down. The way the levels are formed and colored combined with the artifacts and fossils found in them can in us in interpreting happened at the time that the layer was created.

The following table contains the Munsell readings for the soils encountered at the First Baptist Church during the excavation of fall 2007. Note that levels (L) 6 and 7 of the South profile of trench D1 were misplaced before they had a Munsell reading taken.

The information below has been linked in various ways to bring out the patterning in the soil layers from trench to trench. For instance, under the layers links will bring you to a page with only soil samples from the layer chosen. Especially in the topmost layers (1-4) this classification shows how similar the soil colors are from trench to trench at the same level (not depth), suggesting several site-wide events which resulted in similar layers in most trenches. We invite you to explore the various ways of classification and to see what patterns you can discern!

Although monitors show color differently, since the Munsell classification is provided it is anticipated that interested parties can reference the Munsell chart if true soil color at the site is a pressing concern. For all others, the Munsell swatches have been matched to what was deemed to be the same color in a Photoshop palette and the digitized profiles have been colored appropriately. To see the digital profile for any of the walls listed below simply click on the link for trench or wall.

Trench         Wall                East/West            Depth   Profile Label    Munsell


D4	        N	                 80E                    10cm A      1L          5YR 3/1

D4	        N	                 80E	             25cm C     2L	         10YR 3/2

D4	        N	                 80E	             40 D	      3L	         2.5Y 4/2

D4	        N	                 80E	             50 E	      4L	         2.5Y 4/2

D4	        E	                 10S	              4 A       1L	         10YR 4/1

D4	        E	                 10S	             10 A	      2L	         2.5Y 3/2

D4	        E	                 10S	             20 B	      3L	         7.5YR 4/4

D4	        E	                 10S	             30 C	      4L	         7.5YR 4/0

D4	        E	                 10S	             40 D	      5L	         5YR 4/2

D4	        E	                 10S	             50 E	      6L	         5YR 4/2

D4       	        E	                 60S	             10 A	      7L	         10YR 3/1

D4	        E	                 60S	             16 B	      8L	         2.5Y 5/2

D4	        E	                 60S	             25 C	      9L	         5YR 5/3

D4	        E	                 90S	             15 B	      10L	         2.5Y 3/0

D3	        N	                 30E	              5 A	      1L	         5YR 3/1

D3	        N	                 30E	             18 B	      2L	         10YR 4/2

D3	        N	                 30E	             35 D	      3L	         10YR 4/4

D3	        N	                 30E	             45 E	      4L	         10YR 4/4

D2	        E	                 70S	             10 A	      1L	         2.5Y 3/2

D2	        E	                 70S	             20 B	      2L	         10YR 4/2

D2	        E	                 70S	             30 C	      3L	         2.5Y 3/2

D2	        E	                 70S	             45 E	      4L	         10YR 3/3

D2	        E	                 70S	             60 F	      5L	         10YR 6/4

D2	        E	                 70S	             85 I	      6L	         10YR 6/6

D2	        S	                 30W	             10 B	      1L	         2.5Y 3/2

D2	        S	                 30W	             23 C	      2L	         7.5YR 4/2

D2	        S	                 30W	             30 C	      3L	         2.5Y 3/2

D2	        S	                 30W	             40 D	      4L	         10YR 5/4

D2	        S	                 30W	             45 E	      5L	         10YR 5/2

D2	        S	                 30W	             53 F	      6L	         7.5YR 5/4

D2	        S	                 30W	             63 G	      7L	         10YR 6/4

D2	        S	                 30W	             78 H	      8L	         10YR 5/3

D1	        S	                 20W	              5 A	      1L	         10YR 3/2

D1	        S	                 20W	             15 B	      2L	         7.5Y 3/2

D1	        S	                 20W	             28 C	      3L	         10YR 3/3

D1	        S	                 20W	             40 D	      4L	         5YR 3/3

D1	        S	                 20W	             55 F	      5L	         7.5YR 4/2

D1	        S	                 80W	             28 C	      8L	         5YR 5/4

D1	        S	                 80W	             38 D	      9L	         5YR 5/4

D1	        S	                 80W	             56 F	      10L	         5YR 5/6

D1	        E	                 70S	              5 A       1L	         2.5Y 3/2

D1	        E	                 70S	             12 B	      2L	         10YR 3/2

D1	        E	                 70S	             25 C	      3L	         10YR 3/2

D1	        E	                 70S	             38 D	      4L	         10YR 3/2

D1	        E	                 70S	             50 E	      5L	         5YR 4/6

C2	        W	                 20N	             15 B	      1L	         10YR 3/2

C2	        W	                 20N	             25 C	      2L	         10YR 3/2

C2	        W	                 20N	             40 D	      3L	         5YR 4/1

C2	        W	                 20N	             55 F	      4L	         10YR 5/6

C1	        S	                 40W	             10 A	      1L	         7.5YR 4/2

C1	        S	                 40W	             25 C	      2L	         10YR 5/3

C1	        S	                 40W	             35 D	      3L	         10YR 4/1

C1	        S	                 40W	             50 E	      4L	         5YR 4/3

C1	        N	                 20E	             10 A	      1L	         2.5Y 3/2

C1	        N	                 20E	             20 B	      2L	         2.5Y 3/2

C1	        N	                 20E	             35 D	      3L	         10YR 4/1

C1	        N	                 20E	             50 E	      4L	         5YR 4/2

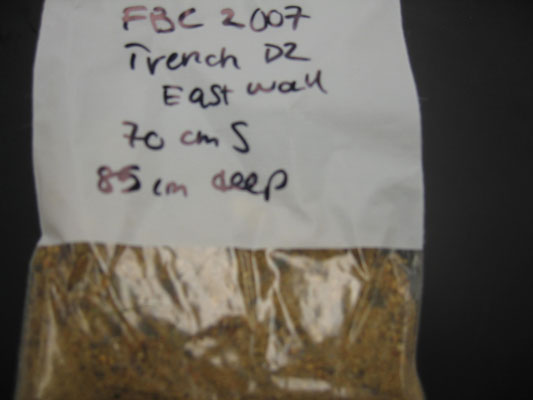

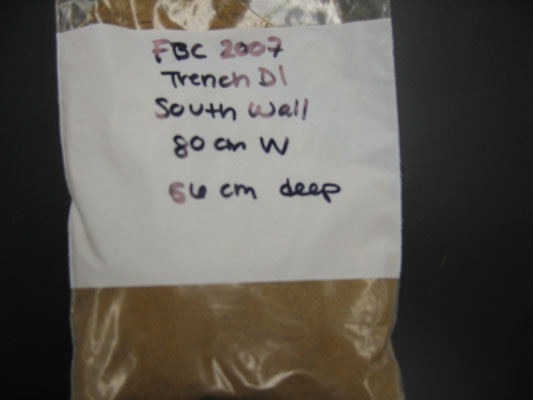

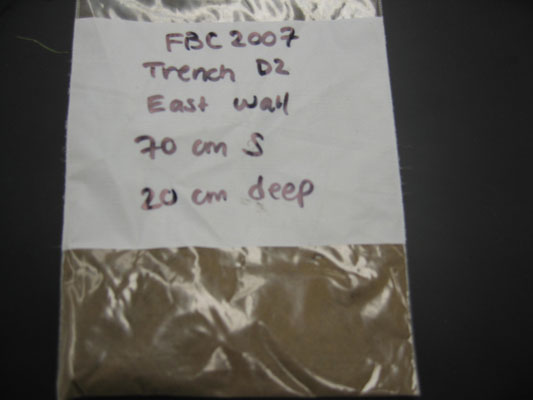

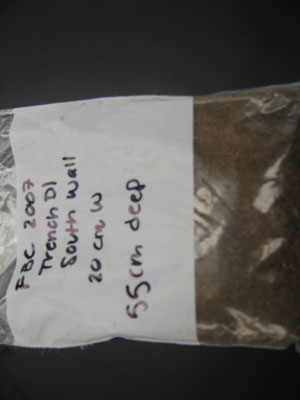

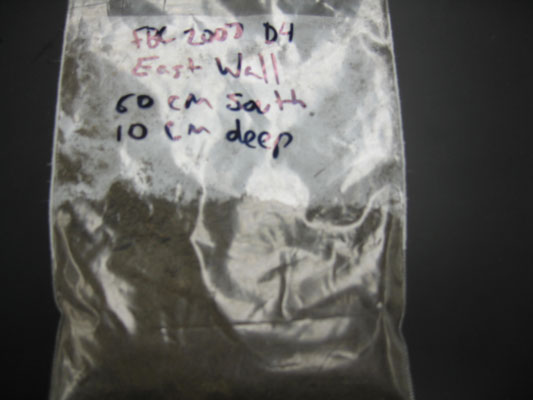

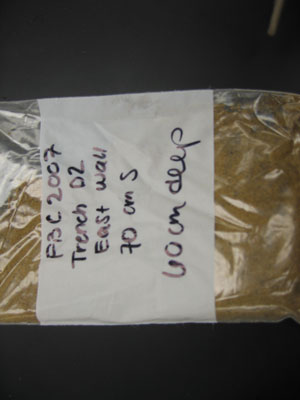

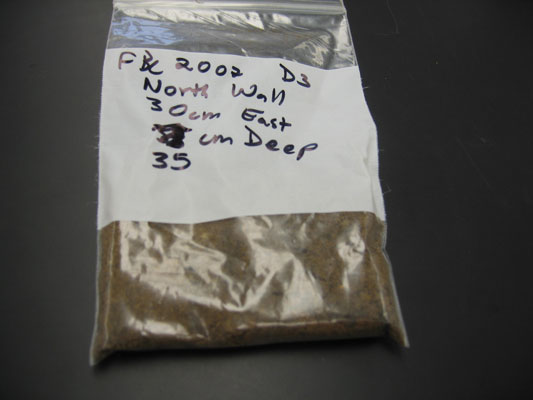

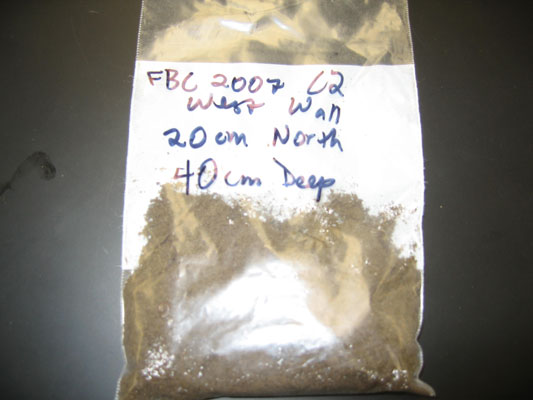

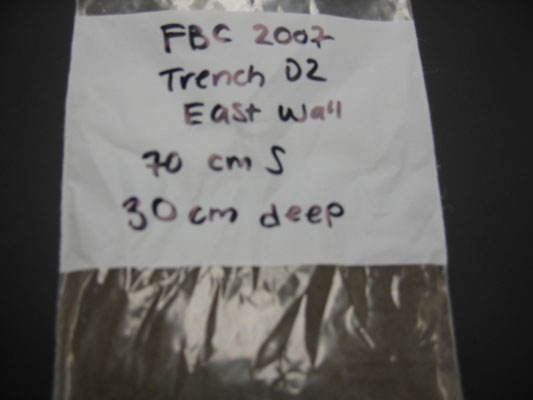

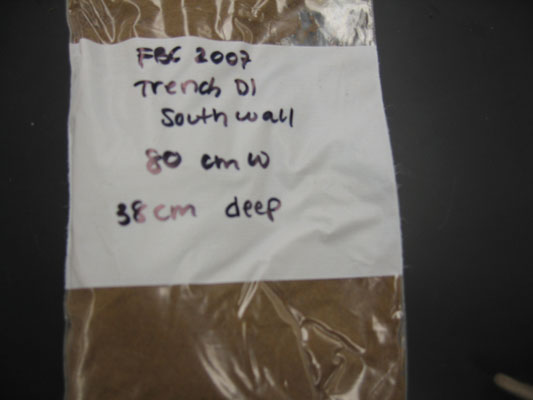

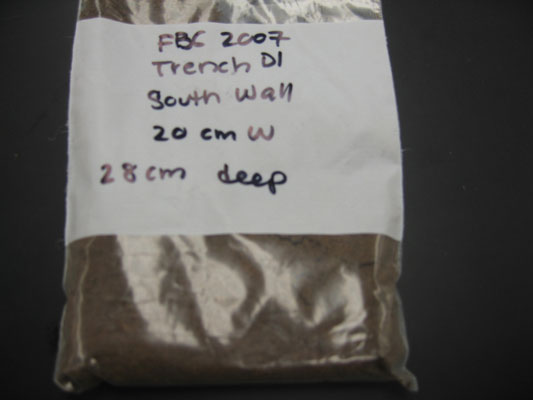

Below are examples of Munsell# soil colors. Theses examples are based on the soil samples of the different trenches:

Uploaded Image

Uploaded Image

Uploaded Image

Uploaded Image

Uploaded Image

Uploaded Image

Uploaded Image

Uploaded Image

Uploaded Image

Uploaded Image

Uploaded Image

Uploaded Image
